P735 - Deuterium Lamp

P735 - Deuterium Lamp

by Photron
$363.00 - $363.00
$363.00
$363.00 - $363.00
$363.00
Download Product Datasheet

Instrument

Perkin Elmer 4100, 2100, 1100(B) and Aanalyst 600/700/800 AA Spectrometers

Electrical

Filament / Heater Voltage Start 2.5 - 3.0 VDC
Operating 1.5 - 2.0
Filament / Heater Current 4.5A Max
Discharge / Arc Voltage Strike @25°C >350 VDC
Operating 60 - 90 VDC
Discharge / Arc Current 10 -300mA

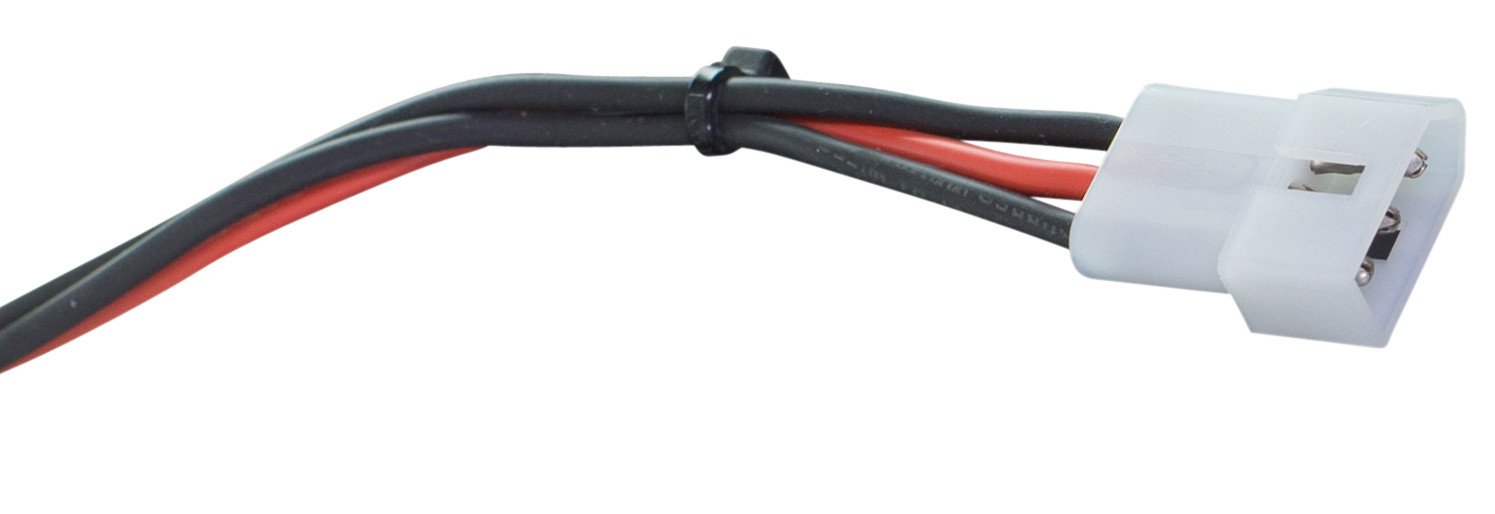

Leads Black Filament & Cathode
Red Anode
Terminals 3 Pin housing

Optical

Window material UV Transmitting Borosilicate
Source aperture Ø 1mm Diameter
Wavelength range 185nm - 400nm
Noise <1 x 10-4 Absorption units
Drift < 3 x 10-3 Absorption units

Operational Life

When radiant energy reaches 50% of the initial energy at 300mA(dc).

Warranty:

  1. Do not subject the lamp to mechanical shock.
  2. Before using the lamp, ensure glass envelope is clean and free from dirt. Envelope may be gently wiped with either alcohol or acetone.
    Caution: the circumference of the glass envelope around the light box is very thin and should be handled with extreme care.
  3. Care must be taken not to touch lamp body with bare hand, as it's temperature reaches over 200°C during operation.
  4. UV radiation is harmful to eyes. Suitable eye protection must be worn when observing light output.
  5. Since this lamp operates at high voltages, extreme caution is require to prevent electrical shock.
